Description
The LAN Scout Jr. 2 Cable Tester tests installed or loose data (CAT 5e, CAT 6/6A) cables terminated with RJ45 connectors. It also, tones cables with multiple tone frequencies. The larger display is backlit for easier reading in low lit areas. This model uses 2 x AAA batteries (included). Three buttons provide an intuitive user interface.
- Cable tester for data (RJ45) terminated cables and patch cords
- Large backlit LCD for low lit areas displays pin to pin wiremap results
- Test for Open, Short, Miswire or Split-Pair faults, Cross-over and Shield
- Intuitive user interface features three buttons with simple, easy-to-identify test responses
- Tone on single wire, wire pair or all 8 conductor wires
- Multiple style tone generator (solid / warble); requires probe Cat. No. VDV500-123 (sold separately)
- Auto Power-Off feature; 10-minutes in test mode, 60-minutes in tone mode
- Soft, slip-resistant, rugged overmold for easy gripping and durability
- Replaceable 2 x AAA batteries (included)

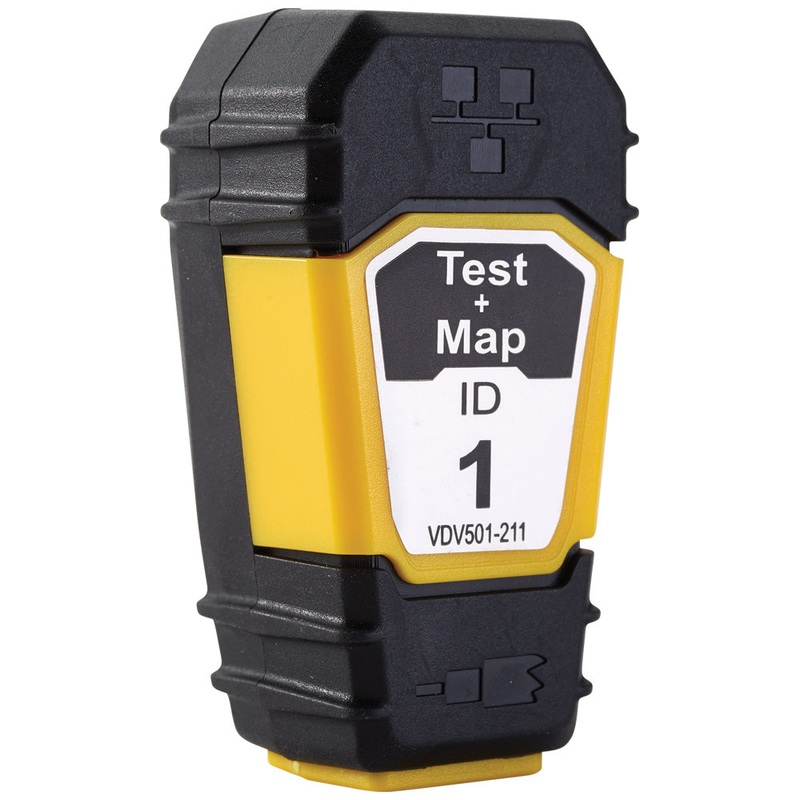

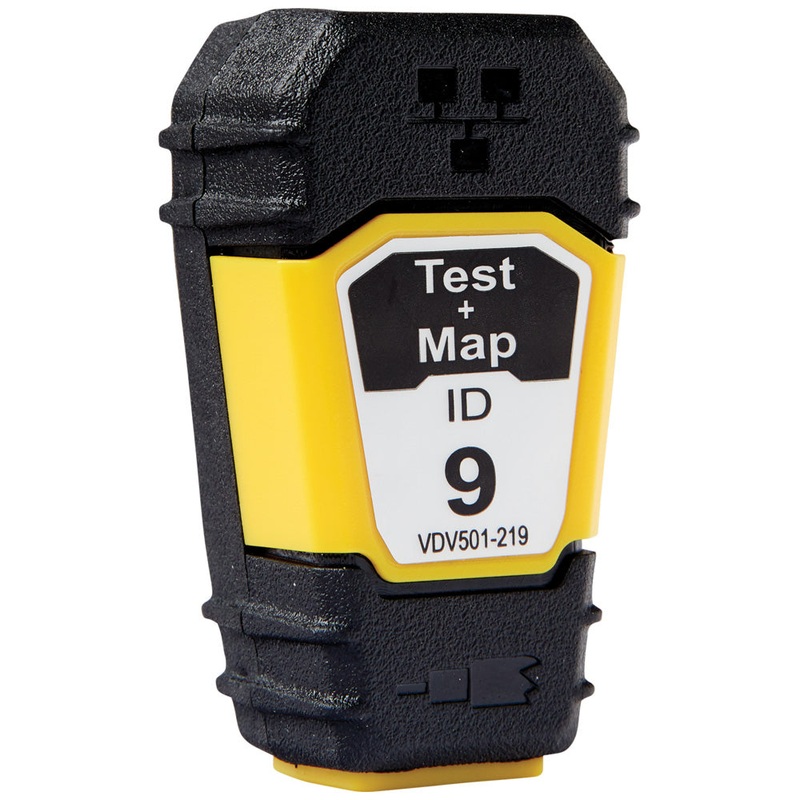

- Replaceable self-storing remote (included)
- Replacement remote available; sold separately (Cat. No. VDV999-200)
Additional Information
Type:DATA, Voice, LANApplication:Cable TestingSpecial Features:Backlit LCDCable Type:Shielded or Unshielded; Cat7, Cat6/6A, Cat5E, Cat3Overall Length:5″” (13 cm)Overall Height:1″” (2.5 cm)Overall Width:2.5″” (6.4 cm)Material:Plastic and Stamped MetalTest-n-Map ID Remotes:1Location ID:NoBatteries:2 AAA AlkalineBattery Life:Active: 80 hr; Standby: 3 yr.Drop Protection:2″ (0.6 m)Supported Remotes:(1) Self-StoringConnection & Adapter Types:RJ45Display:LCDMultiple Style Tone Generator:YesFaults Detected:Pass, Miswire, Open-Fault, Short-Fault, Split Pair and ShieldTest & Measure Types:Data, RJ45Included:Tester, Remote, 2 AAA Alkaline BatteriesWeight:4.3 oz (122 g)
